K1EL Systems is now offering a RigPi CW board. We are calling it the CW Board 2 since it is not drop in compatible with the original MFJ RigPi CW board. Instead it has been designed to fit in the K1EL RigPi 2 enclosure which is 3D printed using a design that can be downloaded from Thingiverse. K1EL will be offering a limited number of printed enclosures for sale to those who do not have access to a 3D printer. Just add your own Raspberry PI 4 and the RigPi sofware image from www.rigpi.com. The K1EL enclosure includes accomodations for a cooling fan and easy access to the micro SD card on the Raspberry PI.
RigPi Cw Board 2 Features
- GPIO Connector that mates directly with the Raspberry PI 4
- Two separate 1/8" solid state relay keying outputs for SO2R
- Sidetone speaker
- 1/8" Iambic paddle input
- K1EL WinKeyer 3 CW controller IC
- WPM Speed control
- Key and PTT LEDs
- Cooling fan interface
CW Board 2 Documentation
RigPi Cw Board 2 Manual rev A.0
RigPi2 Enclosure Manual with CW board schematic
Link for Rig Pi2 3D Enclosure .stl files on Thingiverse:
The Enclosure Kit includes 3D printed top and bottom along with the Enclosure Parts kit.

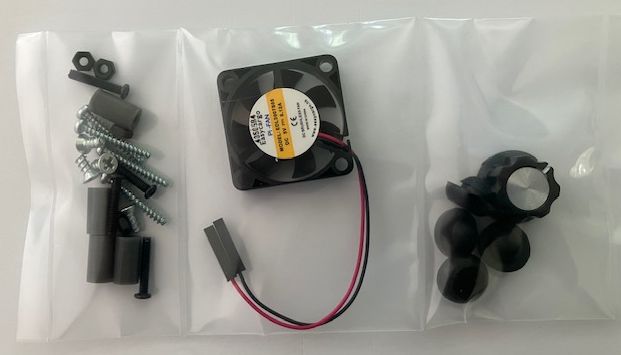

The Enclosure Parts kit contains the eight screws for assembly, a fan with mounting hardware, rubber feet, and a speed control knob. This is intended for those who print their own enclosure and need the miscellaneous parts.
Copyright 2000-2025- K1EL Systems LLC
Bluesky: @K1ELsys.bsky.social
Available for ordering soon
